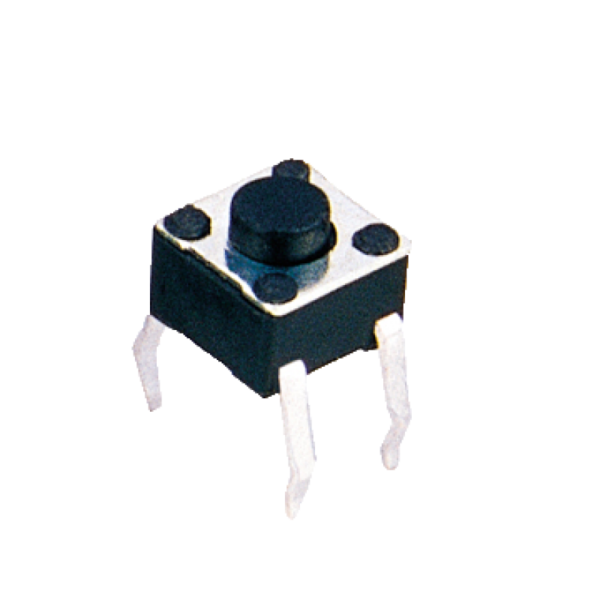

タッチスイッチ FVCP02
Items
Standard
Operating temperature range
-30℃ to +85℃
Rating
50mA. 12VDC
Electrical
Insulation resistance
100MΩ min. 100VDC
performance
Dielectric strength
250V AC for 1 min.
Contact resistance
100mΩ max.
Durability
Lifetime
300,000Cycles; 100,000Cycles;
Mechanical
Operating force
180gf; 250gf
performance
Travel
0.20 ± 0.1mm
