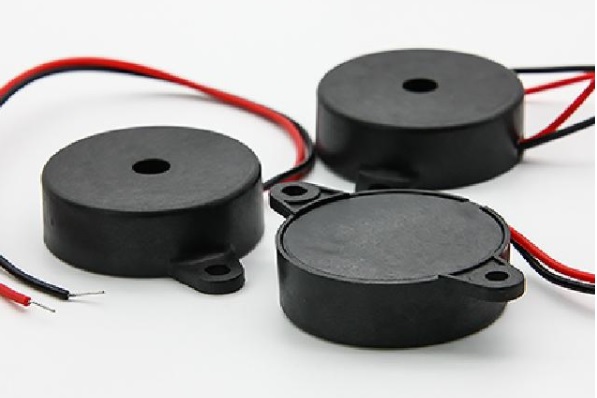

Piezo Buzzer Self Drive Buzzer PS30095W09
ITEM
VALUE
Product No.
PS30095W09
Product Type
Piezo Buzzer Self Drive Buzzer

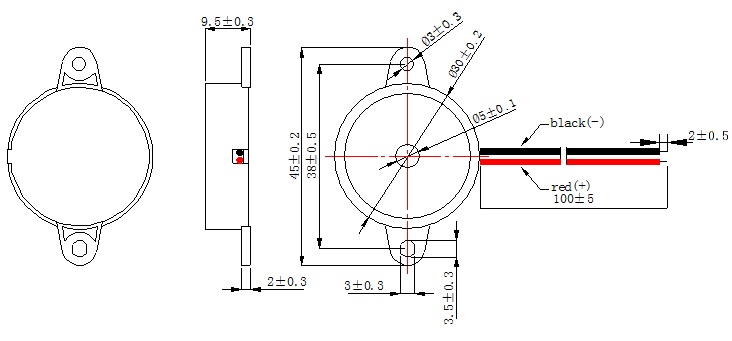

Size
30.00mm
Height
9.50mm
Sound-hole Location
Speak up Top
Terminal Type
Wire
Weight
5g
Housing Material
PPO
Electrical characteristics
No.
ITEM
UNIT
VALUE
1
Rated Voltage
VDC
9
2
Operating Voltage
VDC
6~15
3
Rated Current
mA
20
4
Sound Output at 10cm
dB
85@30
5
Frequency
Hz
3500
6
Operating Temperature
℃
-20 ~ +70
7
Storage Temperature
℃
-30 ~ +80
