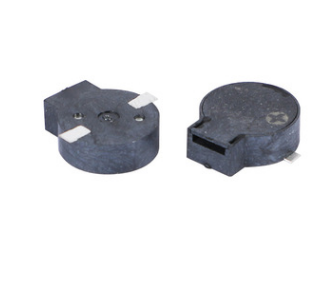

Magnetic Buzzer External Drive Buzzer SM9032R
ITEM
VALUE
Product No.
SM9032R
Product Type
Magnetic Buzzer External Drive Buzzer
Height
3.20mm
Sound-hole Location
Side vocalizationSide
Terminal Type
SMD
Weight
1g
Housing Material
LCP
Electrical characteristics
No.
ITEM
UNIT
VALUE
1
Rated Voltage
Vo-p
3
2
Operating Voltage
Vo-p
2.5~4.5
3
Rated Current
mA
90
4
Sound Output at 10cm
dB
95
5
Resonant Frequency
Hz
2700
6
Coil Resistance
Ω
16
7
Operating Temperature
°C
-20 ~ +70
8
Storage Temperature
°C
-30 ~ +85
