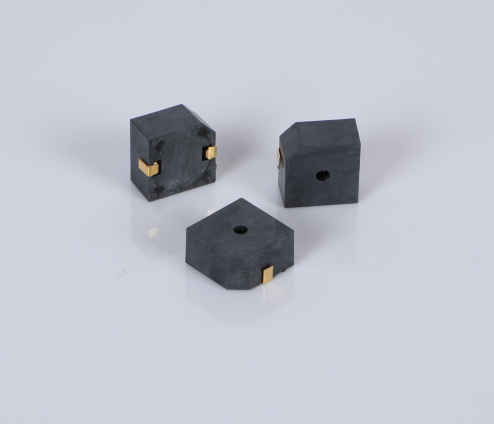

Magnetic Buzzer Self Drive Buzzer SMS9650
ITEM
VALUE
Product No.
SMS9650
Product Type
Magnetic Buzzer Self Drive Buzzer
Height
5.00mm
Sound-hole Location
Top
Terminal Type
SMD
Weight
1.5g
Housing Material
LCP
Electrical characteristics
No.
ITEM
UNIT
VALUE
1
Rated Voltage
VDC
5
2
Operating Voltage
VDC
4~7
3
Rated Current
mA
30
4
Sound Output at 10cm
dB
85
5
Frequency
Hz
3000
6
Operating Temperature
℃
-20 ~ +70
7
Storage Temperature
℃
-30 ~ +85
